Imaging of Choledochocele and Choledochal Cyst

Clinical features and pathophysiology

  • Congenital cystic dilatations of the biliary tree.
  • Clinical presentation: Triad of
    • Abdominal pain
    • Jaundice
    • Abdominal mass.
  • Associated with: Biliary atresia and hepatic fibrosis.
  • Complications: 3Cs of Choledochal Cyst
    • Calculi
    • Carcinoma (10-15% lifetime risk)
    • Cyst rupture (peritonitis), pancreatitis.
  • Treatment: Surgical excision with reconstruction.

Todani Classification of Choledochal Cyst

Todani Classification of Choledochal Cysts Radiology
  1. Extrahepatic bile duct – Most common (77-87%)
  2. Extrahepatic bile duct diverticulum.
  3. Choledochocele.
  4. Multiple cysts – Intra / extra. IVA – BOTH Intra and extrahepatic bile duct cysts. IVB: Only extrahepatic bile duct cysts.
  5. Only intrahepatic bile duct dilatation (Caroli’s disease).

Pathophysiology of Choledochal cyst

Anomalous pancreaticobiliary junction: Abnormal junction of the pancreatic duct and common bile duct that occurs outside the duodenal wall to form a long common channel (> ⁉️ mm -Watch the video for the answer).

Pathophysiology of Choledochal cysts : Long channel + Obtuse / right angle = Reflux of pancreatic juices into bile ducts-> Dilatation of Biliary tree and formation.

Komi Classification of Anomalous pancreaticobiliary junction

  1. Right angle union.
  2. Acute angle union.
  3. Complex pattern.

Image : Komi Classification of anomalous pancreaticobiliary junction

Imaging of Choledochal Cysts

Imaging pearl: Choledochal Cysts should follow bile duct signal on all imaging modalities

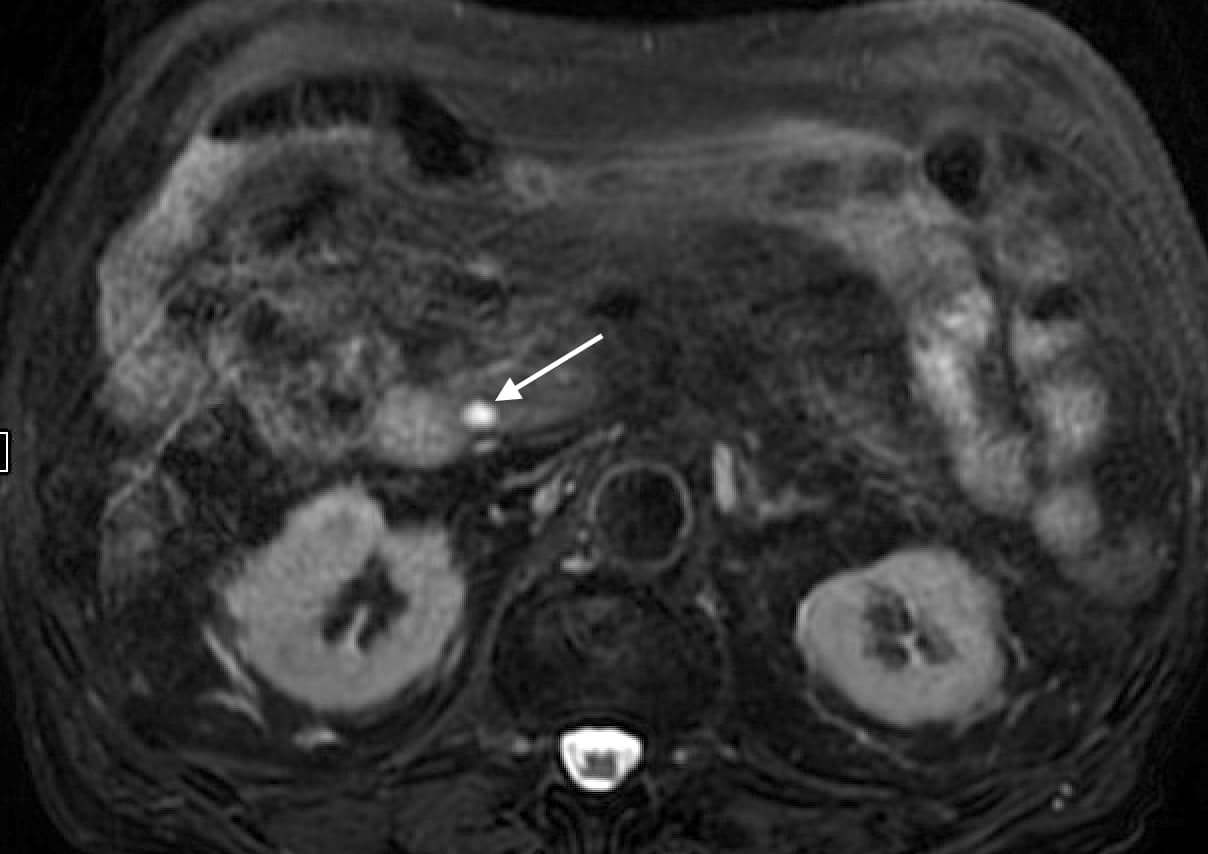

T2 fat saturated MRI image of Choledochal Cyst
MRCP MRI image showing a choledochocele type III choledochal cyst

Ultrasound: Anechoic cystic lesions, which communicate with the biliary tract and SEPARATE from the gallbladder.


  • Non-enhancing cystic structure at porta hepatis contiguous with the biliary tree
  • Intramural cystic mass in the duodenal wall communicating with CBD (type III) as illustrated in the case above.
  • Multiple intrahepatic/extrahepatic cysts communicating with bile ducts (type IV and V)


  • MRCP is the ideal investigation and will show cystic dilatation of biliary tree and relationship (and communication) of cysts with adjacent bile ducts.
  • Hypointense on T1WI, hyperintense on T2WI, without wall enhancement on post-contrast images – Signal follows biliary tree.
  • The presence of abnormal wall hyperenhancement or thickening can be due to superadded infection or malignancy (particularly with nodular or irregular wall thickening).
