You are reporting a case. You want to confirm the anatomy of a particular region. You try a Google search “XYZ region normal anatomy” and are lost in the umpteen irrelevant / paid pages. Or you end up with a file in your “Downloads” folder, which you have no idea what to do with! All you do is end up wasting time. I did the same as a resident.
The solution? I compiled all the relevant and FREE anatomy modules on one page for quick reference so that you do not have to go through the same ordeal!
Go ahead and try for yourself!
Introduction
Radiological anatomy is crucial for radiologists and forms the base for learning radiology. In their first year, residents should be well versed with normal radiographs, ultrasound and CT anatomy followed by MRI in the consequent years. I have found the following websites quite useful for learning normal imaging anatomy and would recommend residents to go through these. Also, these are very useful for students appearing for the anatomy module of the FRCR.
We have now updated the page with more than 20 normal radiological anatomy videos for different body parts. Also, there are videos for the basics of MRI sequences which will be beneficial for residents starting with their MR rotations.
Table of Contents
Head-to-Toe normal radiological anatomy modules:
You will need flash to open a few of these web pages. Detailed instructions are available in the videos here and here. These links are best viewed on Google Chrome with Adobe Flash installed. Sometimes the modules at headneckbrainspine.com will get downloaded instead of playing, in such a situation try opening the website in another browser. Press ‘Ctrl+D’ (Windows)/ ‘⌘ +D’ (Mac users) to bookmark this page.
Note: If you are prompted to download a file or a file gets downloaded automatically when you click a link instead of a webpage, head over to the HeadNeckBrainSpine section to know why and how can you avoid that.
On mobile devices, click on individual headings (CT, MRI etc) to expand that category.
Head and neck CT:
Neck CT
- Neck CT
- Head and Neck
- Nasopharynx
- Oropharynx
- Oral Cavity
- Floor of Mouth
- Retromolar Trigone
- Larynx
- Hypopharynx
- Innervation and Lymph Node Drainage
- Neck nodes:
- Neck Spaces
- Head CT angiography
- Cervical Spine CT
- Dental panorex
Chest CT
Abdomen CT
MSK CT
Neuroradiology MRI:
- Brain
- Brain 2
- MR angiography
- Cranial nerves on CISS/ DRIVE 3D MR sequence
- Neck spaces MRI anatomy
- MRI Neck Anatomy
- Cervical Spine MR
- Lumbar Spine MRI
- Diffusion Tensor Imaging atlas
- Normal MRI Myelination in infants
MR abdomen and pelvis
MSK MRI anatomy
Headneckbrainspine.com
Headneckbrainspine.com is an excellent resource for anatomy but it does not run on many devices and browsers, including Chrome. Also, it has been reported to be down a few times. These modules WILL not run on android and iOS mobile devices and iPads.
I can’t access headneckbrainspine.com anatomy modules. What are the solutions and alternatives?
- If the website is down, you can access the modules from here.
- Use Internet Explorer on Windows computers (until it ceases to exist!).
- Use Safari if using a MacBook.
- Use Flash Embed plugin for Chrome. Head to the plugin page and click “Add to chrome” and you will be able to view the anatomy modules at headneckbrainspine.com in your chrome browser.
Radiological Anatomy Reference Books
- Weir & Abrahams' Imaging Atlas of Human Anatomy
- An excellent text to start off during the first year.
- Covers radiography and cross-section anatomy as well.
- Pocket Atlas of Sectional Anatomy
- Three volumes covering imaging anatomy
- A good book to refer to when you are reporting CT and MR
- All images are accompanied by line diagrams which makes it easy to understand.
- Applied Radiological Anatomy and Anatomy for Diagnostic Imaging – Ryan
- Concise books for anatomy.
- These are textbooks than atlases.
- Recommended for the FRCR by a few radiologists.
- Applied Radiological Anatomy- Butler
Radiological Anatomy video collection
Index of normal radiological anatomy videos:
- Chest X-ray
- Abdominal radiograph X-ray
- Ultrasound abdomen
- Head CT Normal Anatomy and introduction
- Skull base CT normal anatomy with imaging of skull base foramina:
- Temporal Bone CT and MRI
- Paranasal sinuses – Part 2:
- Suprahyoid neck
- CT head and neck angiography
- Neck nodes levels
- CT Thorax normal radiological anatomy video:
- CT abdomen
- MRI brain
- Cervical spine MRI
- MRI Knee
- MRI Shoulder
- MRI Ankle
- Bonus videos: MRI basic sequences
- Body MRI sequences
Chest X-ray
Abdominal radiograph X-ray
Ultrasound abdomen
Head CT Normal Anatomy and introduction
Skull base CT normal anatomy with imaging of skull base foramina:
Temporal Bone CT and MRI
Paranasal sinuses – Part 1:
Paranasal sinuses – Part 2:
Suprahyoid neck
CT head and neck angiography

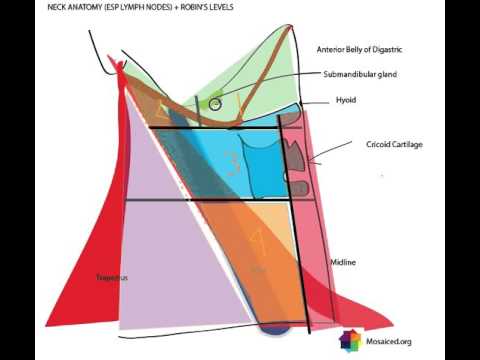

Neck nodes levels
CT Thorax normal radiological anatomy video:
CT abdomen
MRI brain
Cervical spine MRI
MRI Knee
MRI Shoulder
MRI Ankle
Also refer to this article: MRI evaluation of Ankle
MRI Elbow
MRI Wrist
MRI Hip
Bonus videos: MRI basic sequences
Body MRI sequences
Useful online references for radiological anatomy:
All credit goes to the original content creators for putting in all the hard work. I have only made it convenient for all of us. Feel free to request/suggest additional anatomy modules here.
- Radiology Masterclass: a Very good resource for students starting their radiology residency.
- University of Washington: Not only do they cover MSK radiological anatomy, they have an extensive library of MSK resources.
- Imaios E-Anatomy: They have excellent illustrations for all modalities and systems. However, most of the content requires a premium membership.
- Headneckbrainspine.com: an excellent website which has detailed anatomy pertaining to the head and neck and has nearly 500 CT/ MR cases with a short description of each case.
- Frietsrad:: Detailed MSK MRI anatomy.
- Standford MSK MRI: Interestingly the site is called xrayhead.com! Illustrations are good but not as good as Frietsrad.
- Imaging Anatomy: I have discovered this one recently, but this is the best of the lot! It has excellent anatomy modules in 3D MPR format. All their modules have options to display the label by default and on mouse over as well. Just like you would view on any imaging workstation. It also has a unique module for Ultrasound knobology which a newly joined radiology residents would find useful.
- W- Radiology: Although they have fewer illustrations for their images, they cover almost all systems.
- Seattle Children’s Hospital – Radiology Atlases
- Cross-section Tutorials: An old website but covers most of the systems
- Wayne University radiologic anatomy: Another old website but useful for sure.
- Radiopedia: Probably the most accessed radiology reference website. They have an anatomy section as well, however, most of it is plain text and very few illustrations currently. Hence it features lower down on the list:
I have also completed fellowships in body imaging from Mumbai and Ottawa and am currently pursuing a fellowship in cross-section imaging at McMaster University, Canada.
I have a passion for teaching and my area of interest is body imaging. I started the website, RadioGyan to share radiology resources and cases to help residents and radiologists.
You can read my most recent publications on: PubMed and Google Scholar
