ccLS Calculator (Clear Cell Likelihood Score)For Solid Renal Masses on MRI

ccLS Calculator Algorithm

The Clear Cell Likelihood Score (ccLS) is an innovative diagnostic tool used in the evaluation of renal lesions through multiparametric MRI. Developed by Pedrosa and Cadeddu, this five-point Likert scale provides a standardized method to assess the probability of a renal mass being a clear cell renal cell carcinoma (ccRCC), which is the most common and frequently aggressive form of kidney cancer. This ccLS calculator is based on this algorithm.

Key Features of ccLS

1. Standardization: The ccLS system offers a structured framework for categorizing small renal masses, enhancing diagnostic consistency across different clinical settings.
2. Diagnostic Accuracy: Studies have shown that ccLS can effectively differentiate between ccRCC and other renal neoplasms, providing high diagnostic performance and interreader agreement.
3. Clinical Utility: By integrating major MRI features such as T2 signal intensity, corticomedullary phase enhancement, and the presence of microscopic fat, ccLS aids in clinical decision-making, potentially guiding the need for biopsy or surgical intervention.
4. Risk Stratification: The score helps in stratifying patients based on the likelihood of ccRCC, which can inform management strategies, including active surveillance for lower-risk lesions.

Eligibility Criteria

1. The mass must not display macroscopic fat. If macroscopic fat is present, the mass should be classified as classic angiomyolipoma (AML) instead of assigned a ccLS.
2. The renal mass must demonstrate at least 25% enhancement. Masses with less than 25% enhancement are considered cystic and should be evaluated using the Bosniak classification.

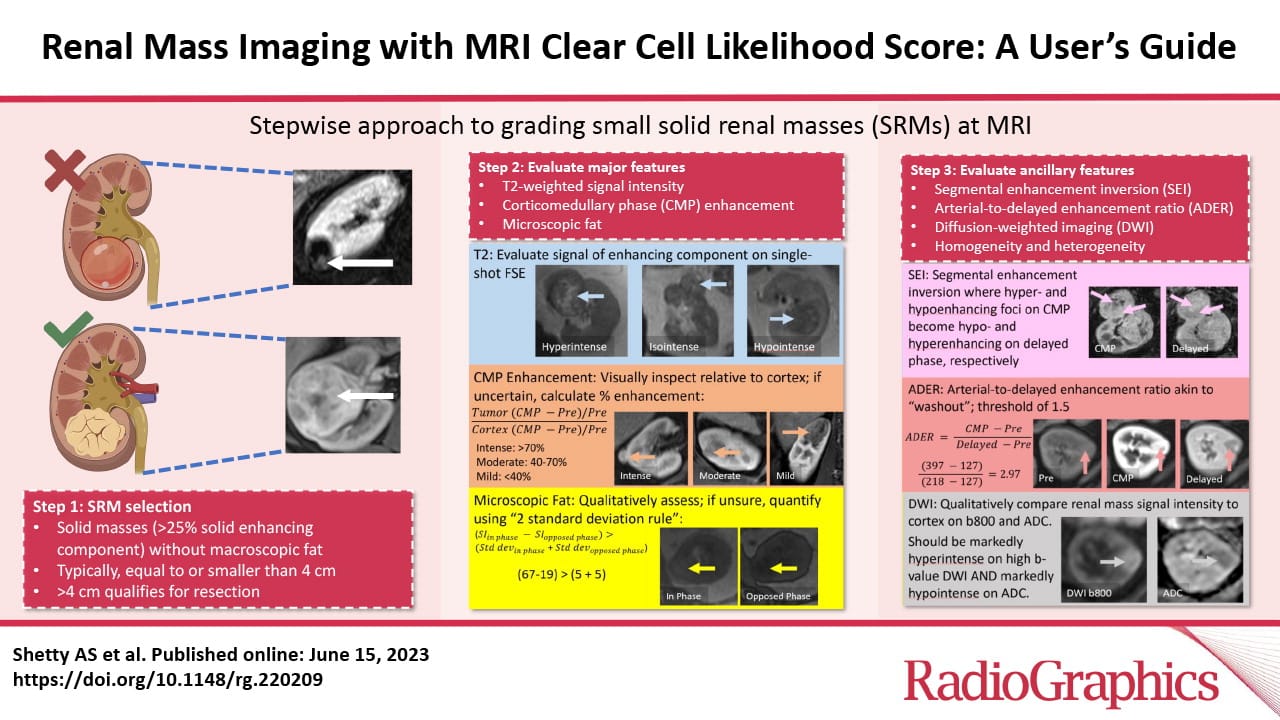

Imaging features

Major Features

These criteria are essential for assigning a ccLS and must be assessed in every renal mass evaluation:

1. Signal Intensity at T2-weighted Imaging:
   • Assess the signal intensity of the enhancing portions of the mass compared to the renal cortex, categorized as hypo-, iso-, or hyperintense.
2. Corticomedullary Enhancement:
   • Evaluate the degree of enhancement during the corticomedullary phase relative to the renal cortex, classified as mild (<40%), moderate (40%-75%), or intense (>75%).
3. Presence of Microscopic Fat:
   • Confirm the presence of microscopic fat by demonstrating a decrease in signal intensity on opposed-phase images compared to in-phase images.

Minor Features

These ancillary findings provide additional context and can help refine the diagnosis when indicated:

1. Diffusion-Weighted Imaging (DWI) Restriction:
   • Assess if the mass shows marked restriction on DWI compared to the renal cortex.
2. Segmental Enhancement Inversion:
   • Determine if there are areas of hyper- and hypoenhancement within the mass that switch characteristics during different phases of contrast enhancement.
3. Arterial-to-Delayed Enhancement Ratio (ADER):
   • Calculate the ratio to indicate washout characteristics, which can suggest specific types of tumors, such as fat-poor AML.

Performance Metrics

In a prospective study, ccLS demonstrated impressive diagnostic capabilities:

• Overall accuracy: 84%
• Sensitivity: 89%
• Specificity: 79%
• Positive predictive value: 84%
• Negative predictive value: 86%

These metrics apply when defining ccLS 4-5 lesions as positive for ccRCC. Notably, a ccLS of 1-2 demonstrates an 86% accuracy and 100% sensitivity/positive predictive value for identifying non-ccRCC histology.

Clinical Implementation

The ccLS system has been successfully implemented into clinical practice, showing similar or slightly superior diagnostic performance compared to prior retrospective studies. This implementation has confirmed that multiparametric MRI can reasonably identify ccRCC histology in small renal masses.

Future Developments

Ongoing research aims to refine the ccLS system further, incorporating additional imaging parameters and machine learning techniques to improve predictive accuracy. As the system evolves, it’s crucial that modifications are data-driven and rigorously validated to ensure they achieve the intended goals.

Conclusion

The Clear Cell Likelihood Score (ccLS) represents a significant advancement in the non-invasive characterization of renal masses. By providing a standardized approach to evaluating MRI findings, it aids clinicians in making more informed decisions about patient management. As research continues and the system is further refined, the ccLS has the potential to become an even more powerful tool in the diagnosis and treatment planning for patients with renal lesions.

References and further reading:

1. Development and Feasibility Testing of the Clinical-Community Linkage Self-Assessment Survey for Community Organizations – PMC. (n.d.). Retrieved October 24, 2024, from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC9163549/
2. Diagnostic performance of prospectively assigned clear cell Likelihood scores (ccLS) in small renal masses at multiparametric magnetic resonance imaging – PMC. (n.d.). Retrieved October 24, 2024, from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6934987/
3. Invited Commentary: MRI Clear Cell Likelihood Score for Indeterminate Solid Renal Masses: Is There a Path for Broad Clinical Adoption? – PMC. (n.d.). Retrieved October 24, 2024, from https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10323227/
4. The Clear Cell Likelihood Score (ccLS) | Pedrosa Lab | UT Southwestern, Dallas, Texas. (n.d.). Retrieved October 24, 2024, from https://labs.utsouthwestern.edu/pedrosa-lab/research/clear-cell-likelihood-score-ccls
