Nutcracker Syndrome: Comprehensive Imaging Guide and Clinical Overview
Nutcracker Syndrome is a rare vascular disorder characterized by compression of the left renal vein (LRV) between the aorta and the superior mesenteric artery (SMA), leading to venous hypertension and a spectrum of clinical symptoms. The syndrome derives its name from the anatomical “nutcracker” effect, where the LRV is squeezed between these two structures, much like a nut between the jaws of a nutcracker. Most cases are sporadic, with no clear inheritance pattern, and the condition is more commonly diagnosed in young adults, particularly women. Clinical findings may include hematuria, flank pain, proteinuria, and, in some cases, pelvic congestion syndrome due to collateral venous drainage.
Key Imaging Features

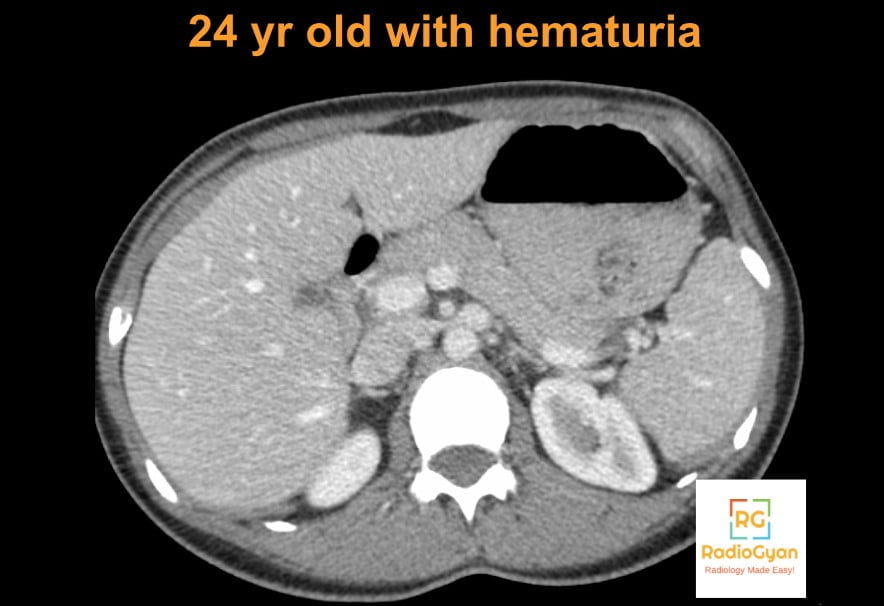

- The “beak sign” is a hallmark imaging finding, seen on axial CT or MRI as an abrupt narrowing of the left renal vein at the aortomesenteric segment, with a sensitivity of 91.7% and specificity of 88.9% for Nutcracker Syndrome.
- A hilar-to-aortomesenteric (AM) diameter ratio of ≥4.9 on CT is 100% specific for Nutcracker Syndrome, while a compression ratio of 2.25 is highly suggestive in symptomatic patients.
- Doppler ultrasound (DUS) demonstrates a significant increase in peak velocity at the compressed segment, with a velocity ratio (hilar to AM segment) often exceeding 8:1 in affected individuals.
- Proximal dilatation of the left renal vein is commonly observed, with anteroposterior diameter ratios (hilar to AM segment) typically greater than 5.0 in patients compared to controls.
- High signal intensity in the LRV on fast-spin-echo T2-weighted MRI sequences reflects venous hypertension and stagnation, aiding both diagnosis and assessment of treatment response.
- On oblique sagittal reformations, an aortomesenteric angle less than 41° is highly sensitive for Nutcracker Syndrome, while a beak angle greater than 32° is considered diagnostic.

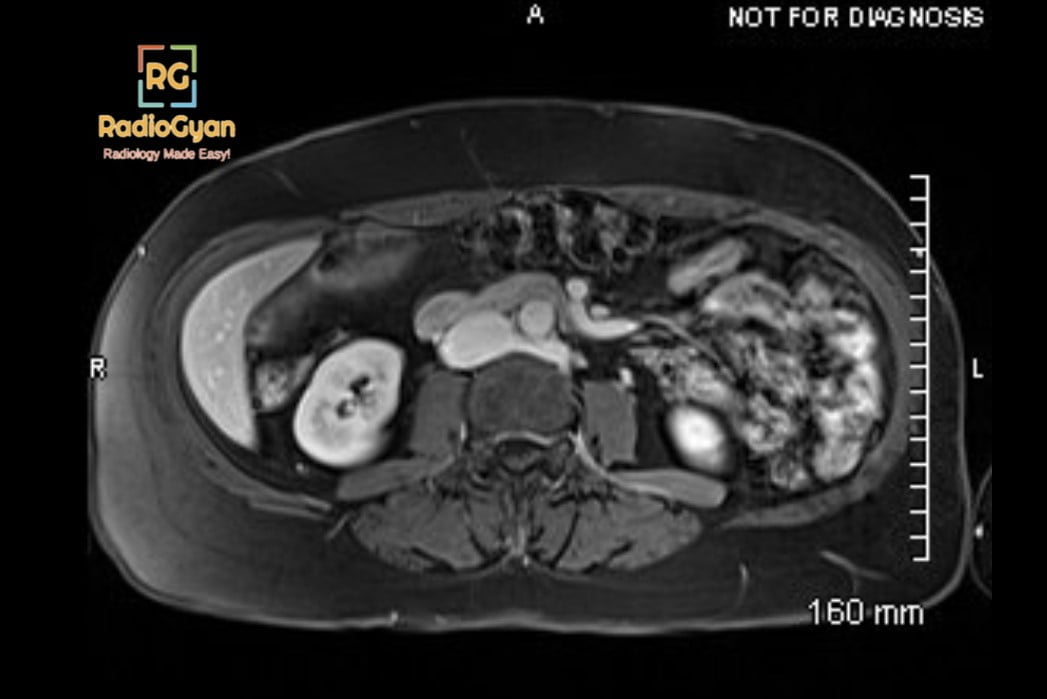

- Posterior Nutcracker Syndrome, a variant, shows compression of the LRV between the aorta and vertebral body, with similar imaging features but a different anatomical location.
Pathophysiology
The pathophysiology of Nutcracker Syndrome centers on mechanical compression of the left renal vein, which impedes venous outflow and results in elevated venous pressure within the renal and gonadal venous systems. This obstruction leads to collateral venous drainage, most commonly via the gonadal and lumbar veins, and may cause venous congestion in the kidney, pelvis, and lower extremities. The resultant venous hypertension manifests as dilatation of the proximal LRV and increased flow velocity at the site of compression, which are directly visualized on imaging. Chronic compression can also lead to microvascular changes, including endothelial injury and proteinuria, and may contribute to the development of pelvic congestion syndrome in women.
Differential Diagnosis
- Renal vein thrombosis may mimic Nutcracker Syndrome with venous dilatation and flow abnormalities, but is distinguished by the presence of intraluminal thrombus and lack of the characteristic “beak sign” or aortomesenteric angle narrowing.
- Renal artery stenosis can present with flank pain and hypertension, but Doppler ultrasound reveals elevated arterial velocities, not venous flow changes.
- Renal cell carcinoma may cause venous invasion and obstruction, but typically demonstrates a mass lesion and abnormal enhancement on contrast imaging.
- Posterior Nutcracker Syndrome is a variant of Nutcracker Syndrome itself, but the compression occurs between the aorta and vertebral body rather than the SMA, requiring careful anatomical localization.
- May-Thurner Syndrome involves iliac vein compression and presents with lower extremity venous symptoms, but the affected anatomy is distinct from the LRV.
Imaging Protocols and Techniques
For optimal evaluation of Nutcracker Syndrome, a multimodal imaging approach is recommended. Cross-sectional imaging with computed tomography (CT) and magnetic resonance imaging (MRI) is the mainstay, focusing on vessel diameter, aortomesenteric angle, and the presence of the “beak sign.” Axial and oblique sagittal reconstructions are essential for accurate measurement of the LRV diameter and angle. MRI is particularly advantageous in children and adolescents due to the absence of ionizing radiation, and sequences such as True Fast Imaging with Steady-State Free Precession (T2-TRUFI) provide excellent visualization of the LRV. Doppler ultrasound (DUS) is a non-invasive first-line modality, with measurement of anteroposterior diameter and peak velocity at both the hilar and aortomesenteric segments. A velocity ratio greater than 8:1 is highly suggestive of Nutcracker Syndrome. In equivocal cases, catheter venography with pressure gradient measurement remains the reference standard, with a renocaval pressure gradient exceeding 3 mm Hg considered diagnostic. Imaging pearls include careful attention to the hilar-to-AM diameter ratio, assessment of collateral veins, and evaluation of venous signal intensity on T2-weighted MRI for evidence of venous hypertension.
